PRODUCT CENTER
-
product details ：

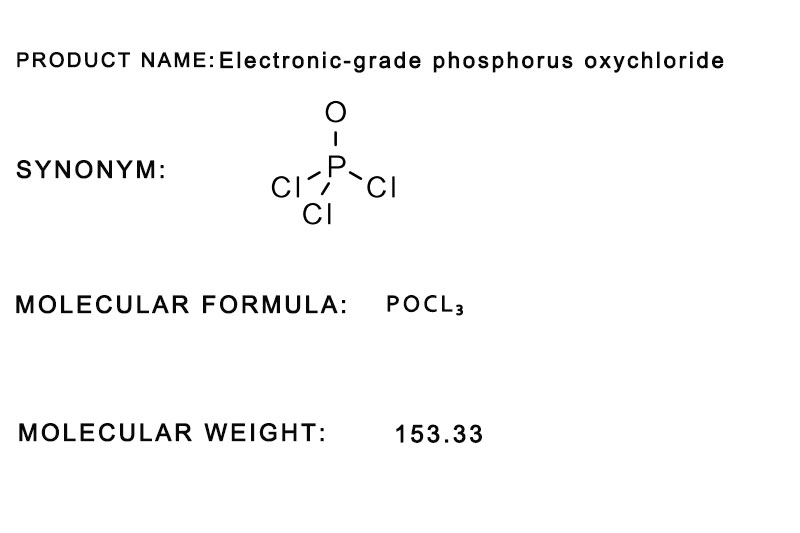

Product composition
SPECIFICATIONS
Test Items | specifications | |
Test Items | Level 6N | Level 7N |
(Sr)w/(μg/kg) ≤ | 5 | 1 |
(Ti)w/(μg/kg) ≤ | 5 | 2 |
(V)w/(μg/kg) ≤ | 10 | 2 |
(Zn)w/(μg/kg) ≤ | 5 | 1 |
Chroma/APHA ≤ | 5 | 5 |
Particles (≥0.3 μm)/(pieces/mL) ≤ | 50 | 50 |
PACKING
Thick PVC plastic bag is used as the outer cover of the container; sponge cushion is built into the PE special box
FUNCTION
Appearance: Colorless transparent liquid.
APPLICATION
This product is mainly used as a diffusion source for solar photovoltaic cells, liquid crystal display devices, integrated circuits and ultra-large-scale integrated circuit chips.
The main application areas of electronic-grade phosphorus oxychloride include chip manufacturing, solar cells, optical fiber preforms and separation devices. It is a liquid phosphorus source for making integrated circuits, solar cells, optical fiber preforms and separation devices. Especially in the chip manufacturing process, electronic-grade phosphorus oxychloride is an indispensable electronic chemical, mainly used for N-type doping of chips.
STORAGE
1. Quartz containers are used for packaging. The containers are placed in wooden boxes or plastic boxes with foam.
2. During transportation, the dangerous goods should be transported in accordance with the requirements of the transportation rules.
3. It should be stored in a cool, dry, well-ventilated warehouse, away from fire and heat sources, and should be stored separately from reducing agents, active metal powders, alcohols, etc. The storage area should be equipped with leakage emergency treatment equipment and appropriate containment materials.
